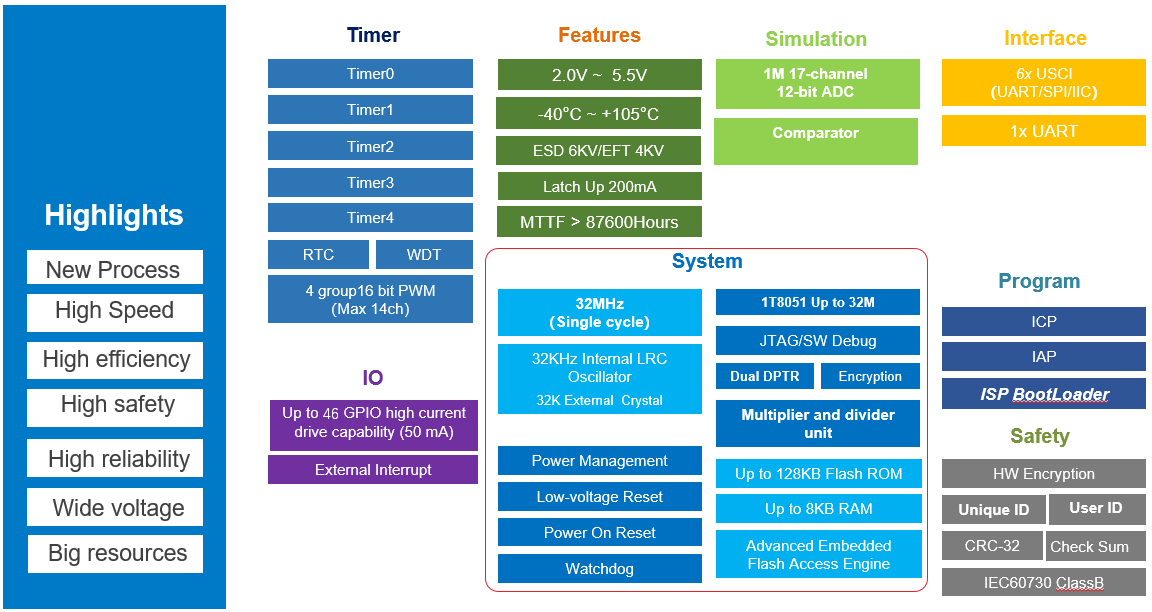

The SC95F series general purpose MCU from SinOne integrates an advanced 1T 8051 core with speeds up to 32MHz, significantly faster than traditional 1T8051 processors. It boasts robust features including a wide 2.0V - 5.5V voltage range, -40℃ to 105℃ temperature tolerance, and strong ESD and EFT protection. With 128 Kbytes Flash ROM, 8 Kbytes SRAM, and 1 Kbytes EEPROM, it supports a variety of applications. The MCU features a built-in hardware multiplier and divider, dual DPTR data pointer, and high-precision ADCs, reducing the need for external components and enhancing system efficiency. It includes low-power modes, a watchdog timer, and supports in-circuit programming, making it suitable for demanding environments such as industrial control, IoT, and consumer electronics where reliability and performance are critical.

Product Range
DOWNLOAD PRODUCT GUIDE
  P/N PKG Type ROM
(Byte) 		RAM
(Byte) 		IAP
(100K times) 		BootLoader EEPROM
(100K times) 		Voltage
(V) 		2%IRC MHz
(32K Autocorrection) 		Ipd
(uA) 		UART USCI
(UART/SPI/IIC) 		ADC PWM
（with dead-time insertion） 		LCD/LED Driver EXT Crystal CMP
SC95F7571 SOP16 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 2 12bit*8ch 16bit*5ch - - -
SC95F7572 SOP20/TSSOP20/QFN20 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*9ch 12bit*6ch - - -
SC95F7573 SOP28/TSSOP28/QFN28 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7575 LQFP32/QFN32 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7671 SOP16 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 2 12bit*8ch 12bit*5ch - - -
SC95F7672 SOP20/TSSOP20/QFN20 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*9ch 12bit*6ch - - -
SC95F7673 SOP28/TSSOP28/QFN28 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7675 LQFP32/QFN32 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7612B SOP20/TSSOP20/QFN20 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 2 12bit*9ch 16bit*6ch - - Y
SC95F7613B SOP28/TSSOP28 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*8ch 4*16 - Y
SC95F7615B LQFP32/QFN32 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*12ch 4*16 32K Y
SC95F7616B LQFP44 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 5 12bit*17ch 16bit*12ch 8*24/6*26/5*27/4*28 32K Y
SC95F7617B LQFP48/QFN48 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 6 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 32K Y
SC95F7613 SOP28/TSSOP28 64K 4K 1/2/4/64K Built-in1K - 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*9ch 12bit*4ch 4*16 - Y
SC95F7615 LQFP32/QFN32 64K 4K 1/2/4/64K Built-in1K - 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*9ch 12bit*8ch 4*16 32K Y
SC95F7616 LQFP44 64K 4K 1/2/4/64K Built-in1K - 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC95F7617 LQFP48/QFN48 64K 4K 1/2/4/All Built-in1K 1KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC95F7763 SOP28/TSSOP28 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*8ch 4*16 - Y
SC95F7765 LQFP32/QFN32 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*12ch 4*16 32K Y
SC95F7766 LQFP44 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 5 12bit*17ch 16bit*12ch 8*24/6*26/5*27/4*28 32K Y
SC95F7767 LQFP48/QFN48 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 6 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 32K Y
Shiv Electronics is a authorized distributor for Shenzhen SinOne Microelectronics Co., Ltd. in Mumbai (India).
Contact Us, to know more and to share your specifications.
