The all new SIM7600C chip from SIMcom is an ideal module for wireless networking. It is a multi-band chip compatible with most major mobile communications standards such as LTE, GSM, HSPA, TD-SCDMA and EDGE.

Its biggest advantage is that it can support speeds up to 150 Mbps for downlink and 5.76 Mbps for uplink data transfer in LTE 4G. The SIM7600C is compatible with Windows 2000, XP, Vista, Windows7 and Windows8, making it more attractive and user-friendly.

This module has many usages in applications such as GNSS (Global Navigation Satellite System), Industrial Interface, RIL (Radio Interface Layer) Driver and USB. The SIM7600C�s strong extension capability with interfaces like USB 2.0, UART, SPI, PCM and GPIO makes it one of the finest SMT modules available in today�s market.

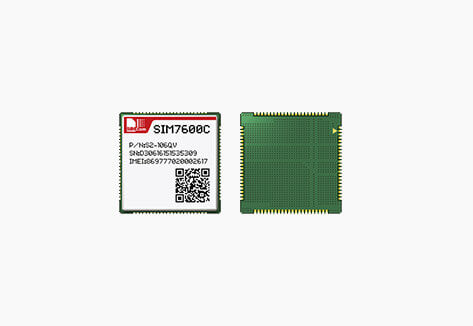

SIMcom SIM7600C chip
4G(LTE)
3G(EV-DO/HSPA+)
3G(WCDMA)
2.5G(EDGE)
2G(GSM/GPRS )
Multi-Band 4G
Dual-Band 3G
Quad-Band 2G
SMT
MMS
USB
Industrial Interface
RIL Driver
GNSS
Details
General features SIM7600C
  • Quad-Band TDD-LTE B38/B39/B40/B41
  • Tri-Band FDD-LTE B1/B3/B8
  • Dual-Band TD-SCDMA B34/B39
  • Dual-Band WCDMA/HSDPA/HSPA+ B1/B8
  • GSM/GPRS/EDGE 900/1800 MHz
  • Control Via AT Commands
  • Supply voltage range: 3.4V~ 4.2V
  • Operation temperature: -40℃ to +85℃
  • Dimension: 30*30*2.9 mm
  • Weight: 5.5g
  • GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
  • LTE CAT4
    • Uplink up to 50Mbps,
    • Downlink up to 150Mbps
  • TD-SCDMA
    • Uplink up to 128Kbps,
    • Downlink up to 384Kbps
  • TD-HSDPA/HSUPA
    • Uplink up to 2.2 Mbps,
    • Downlink up to 2.8 Mbps
  • HSPA+
    • Uplink up to 5.76 Mbps,
    • Downlink up to 42 Mbps
  • WCDMA
    • Uplink/Downlink up to 384Kbps
  • EDGE Class
    • Uplink/Downlink up to 236.8Kbps
  • GPRS
    • Uplink/Downlink up to 85.6Kbps
  • CSD
    • GSM data rate 14.4Kbps
    • WCDMA data rate 57.6Kbps
    • WCDMA 64kbps CSD for Video call
Other Features
  • USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
  • USB Driver for Windows CE/Mobile
  • USB Driver for Linux /Android
  • RIL supporting for Android/Windows CE/Mobile
  • Automatic installation for windows
  • Linux API SDK
  • Firmware update via USB
  • TCP/IP/IPV4/V6 Multi-PDP,MT PDP
  • FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
  • DTMF
  • MBIM to Win8
  • Source code of the PC manager of the device for reference
Interfaces
  • USB2.0
  • UART
  • SIM card
  • SPI
  • I2C
  • Constant current sink
  • GPIO
  • ADC
  • PCM
  • SDIO
Certifications(Plan)
  • ROHS
  • REACH
