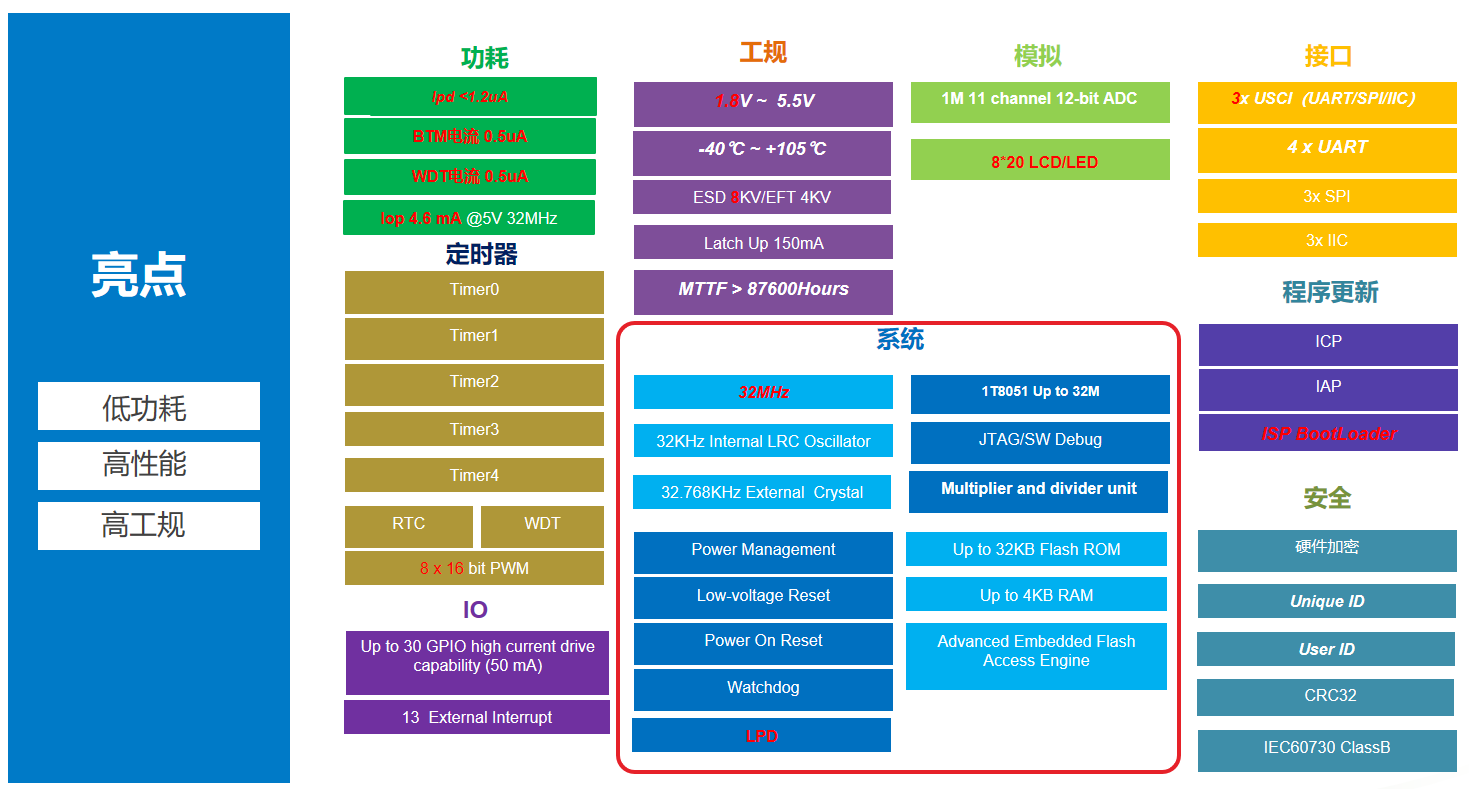

The SC95FWXX series is an industry-grade Flash microcontroller with an enhanced 1T 8051 core, compatible with 80C51 instruction sets. It features a high-speed CPU up to 32MHz, integrated hardware multiplier, divider, and double DPTR data pointers for fast data operations. Supporting up to 40-channel 12-bit PWM, it offers high reliability with a wide voltage range (2.0V-5.5V) and temperature range (-40℃-105℃), and strong ESD (6KV) and EFT (4KV) protection. It includes 64 Kbytes Flash ROM, 4 Kbytes SRAM, and multiple I/Os and interfaces. Ideal for LED control and stepper motor control, it supports ISP, ICP, and IAP for easy development and debugging.
Product Range
DOWNLOAD PRODUCT GUIDE | P/N | PKG Type | ROM (Byte) |
RAM (Byte) |
BootLoader | EEPROM (100K times) |
Voltage (V) |
2%IRC MHz (32K Autocorrection) |
Ipd (uA) |
UART | USCI (UART/SPI/IIC) |
ADC | PWM （with dead-time insertion） |
LCD/LED Driver | EXT Crystal | CMP | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC95FW16 | TSSOP20 | 64K | 4K | Built-in1K | 1KB | 2.0~5.5V | 32/16/8/4 | 2.5 | 1 | 3 | 12bit*8ch | 12bit*16ch | - | - | Y | |
| SC95FW24 | TSSOP28 | 64K | 4K | Built-in1K | 1KB | 2.0~5.5V | 32/16/8/4 | 2.5 | 1 | 3 | 12bit*8ch | 12bit*24ch | - | - | Y | |
| SC95FW40 | LQFP48/QFN48 | 64K | 4K | Built-in1K | 1KB | 2.0~5.5V | 32/16/8/4 | 2.5 | 1 | 3 | 12bit*16ch | 12bit*40ch | - | - | Y |
