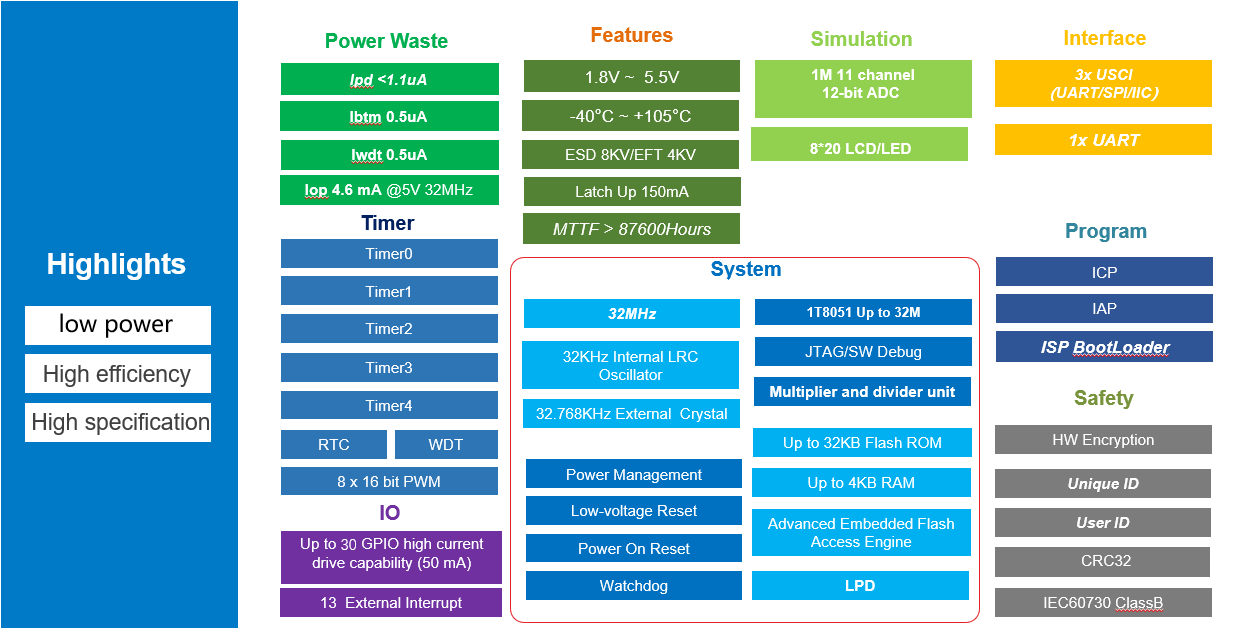

The SC92L series general purpose MCU by SinOne features a wide-voltage, low-power 8051 core, compatible with traditional 8051 instruction sets. It offers high reliability with an operating range of 1.8V-5.5V, temperatures from -40℃ to 105℃, 8KV ESD, and 4KV EFT protection. With low power consumption, it integrates hardware multiplier, divider, CRC, 16-64KB Flash ROM, up to 4KB SRAM, 1KB EEPROM, 46 GPIOs, 5 timers, 17-channel ADC, LCD/LED driver, high-precision oscillators, and multiple communication interfaces. It supports ISP, ICP, and IAP for easy development and debugging. Ideal for IoT controls, smart appliances, RF modules, wearables, sensors, and battery-powered devices, it boasts excellent anti-interference performance.
Product Range
DOWNLOAD PRODUCT GUIDE | P/N | PKG Type | ROM (Byte) |
RAM (Byte) |
IAP (100K times) |
BootLoader | EEPROM (100K times) |
Voltage (V) |
2%IRC MHz (32K Autocorrection) |
Ipd (uA) |
UART | USCI (UART/SPI/IIC) |
ADC | PWM (Full Function) |
LCD/LED Driver | EXT Crystal | LPD | CMP | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC92L7531 | SOP16 | 32K | 4KB | 0/1/2/32KB | Built-in0/1/2/4K | 1KB | 1.8~5.5 | 16/8/4/2 | 1 | 1 | 2 | 12bit*6ch | 16bit*5ch | - | - | 8 levels | - | |
| SC92L7532 | SOP20/ TSSOP20/QFN20 | 32K | 4KB | 0/1/2/32KB | Built-in0/1/2/4K | 1KB | 1.8~5.5 | 16/8/4/2 | 1 | 1 | 3 | 12bit*7ch | 16bit*8ch | 4*14 | - | 8 levels | - | |
| SC92L7533 | SOP28 / TSSOP28/QFN28 | 32K | 4KB | 0/1/2/32KB | Built-in0/1/2/4K | 1KB | 1.8~5.5 | 16/8/4/2 | 1 | 1 | 3 | 12bit*11ch | 16bit*8ch | 4*20 | 32K | 8 levels | - | |
| SC92L7535 | LQFP32/QFN32 | 32K | 4KB | 0/1/2/32KB | Built-in0/1/2/4K | 1KB | 1.8~5.5 | 16/8/4/2 | 1 | 1 | 3 | 12bit*11ch | 16bit*8ch | 8*20/6*22/5*23/4*24 | 32K | 8 levels | - |
