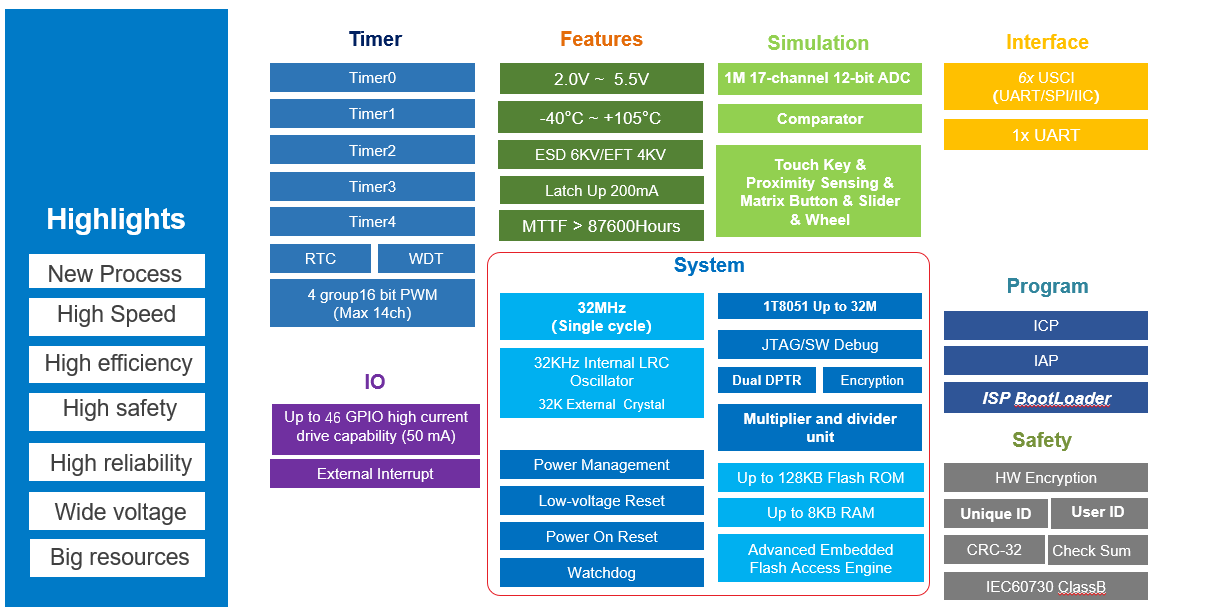

The SC95F series touchkey MCU from SinOne integrates an advanced 1T 8051 core operating at speeds up to 32MHz, equipped with integrated IC hardware multiplier and divider, and dual DPTR data pointer for enhanced data processing. It features a wide 2.0V-5.5V voltage range and -40℃ to 105℃ temperature tolerance, coupled with strong 6KV ESD and 4KV EFT protection. This MCU includes 128 Kbytes Flash ROM, 8 Kbytes SRAM, and 1 Kbytes EEPROM, alongside versatile peripherals like GPIOs, timers, and high-precision ADCs. With built-in low-power functions, a watchdog timer, and multiple programming options (ISP, ICP, IAP), it supports efficient development and debugging. Designed for high sensitivity touchkey applications with excellent anti-interference capabilities, the SC95F series is ideal for smart appliances, industrial controls, IoT devices, and consumer electronics, ensuring reliable performance and reducing overall system complexity and cost.

Product Range
DOWNLOAD PRODUCT GUIDE
  P/N PKG Type ROM
(Byte) 		RAM
(Byte) 		IAP
(100K times) 		BootLoader EEPROM
(100K times) 		Voltage
(V) 		2%IRC MHz
(32K Autocorrection) 		TK
(Max) 		UART USCI
(UART/SPI/IIC) 		ADC PWM
（with dead-time insertion） 		LCD/LED Driver Touch Key Application type Touch Key Performance
SC95F8521 SOP16 32K 4K 0/1/2/32K Built-in1K 1KB 2.0~5.5V 32/16/8/4 13 1 2 12bit*6ch 16bit*5ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8522 SOP20/TSSOP20 32K 4K 0/1/2/32K Built-in1K 1KB 2.0~5.5V 32/16/8/4 17 1 3 12bit*7ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8523 SOP28/TSSOP28 32K 4K 0/1/2/32K Built-in1K 1KB 2.0~5.5V 32/16/8/4 23 1 3 12bit*11ch 12bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8571 SOP16 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 13 1 2 12bit*8ch 16bit*5ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8572 SOP20/TSSOP20/QFN20 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 17 1 3 12bit*9ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8573 SOP28/TSSOP28/QFN28 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 23 1 3 12bit*13ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8575 LQFP32/QFN32 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 27 1 3 12bit*13ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8671 SOP16 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 13 1 2 12bit*8ch 16bit*5ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8672 SOP20/TSSOP20/QFN20 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 17 1 3 12bit*9ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8673 SOP28/TSSOP28/QFN28 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 23 1 3 12bit*13ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8675 LQFP32/QFN32 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 27 1 3 12bit*13ch 16bit*8ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8612B SOP20/TSSOP20/QFN20 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 13 1 2 12bit*9ch 16bit*6ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8613B SOP28/TSSOP28 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 19 1 4 12bit*9ch 16bit*8ch 4*16 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8615B LQFP32/QFN32 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 19 1 4 12bit*9ch 16bit*12ch 4*16 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8616B LQFP44 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 31 1 5 12bit*17ch 16bit*12ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8617B LQFP48/QFN48 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 31 1 6 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8613 SOP28/TSSOP28 64K 4K 1/2/4/64K Built-in 1K - 2.0~5.5V 32/16/8/4 19 1 3 12bit*9ch 12bit*4ch 4*16 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
SC95F8615 LQFP32/QFN32 64K 4K 1/2/4/64K Built-in 1K - 2.0~5.5V 32/16/8/4 19 1 3 12bit*9ch 12bit*8ch 4*16 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
SC95F8616 LQFP44 64K 4K 1/2/4/64K Built-in 1K - 2.0~5.5V 32/16/8/4 31 1 3 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
SC95F8617 LQFP48/QFN48 64K 4K 1/2/4/64K Built-in 1K - 2.0~5.5V 32/16/8/4 31 1 3 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
SC95F8762 SOP20/TSSOP20/QFN20 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 13 1 2 12bit*9ch 16bit*6ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8763 SOP28/TSSOP28 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 19 1 4 12bit*9ch 16bit*8ch 4*16 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8765 LQFP32/QFN32 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 19 1 4 12bit*9ch 16bit*12ch 4*16 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8766 LQFP44 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 31 1 5 12bit*17ch 16bit*12ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8767 LQFP48/QFN48 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 31 1 6 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8735 LQFP32/QFN32 128K 8K 0/1/2/128K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/4 19 1 4 12bit*9ch 16bit*12ch 4*16 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
SC95F8736 LQFP44 128K 8K 0/1/2/128K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/4 31 1 4 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
SC95F8737 LQFP48/QFN48 128K 8K 0/1/2/128K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/4 31 1 5 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 Spring/Space/Proximity sensor/Full screen/ITO LCD/Matrix button 10V Dynamic CS/EFT 4KV
